Centrifugal Acoustic Cabinet Fans

  1. Range of cabinet fans designed for smoke extraction in fire conditions and certified (CE marked).
  2. The casings are manufactured from heavy gauge galvanised sheet steel.

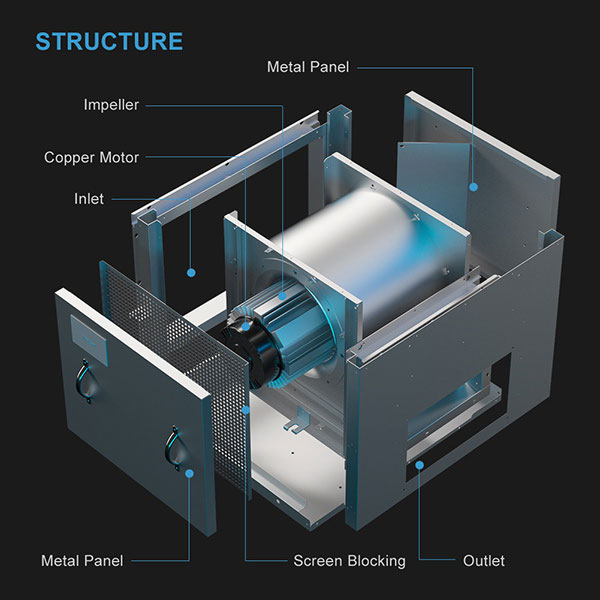

  3. All models incorporate double inlet forward curved centrifugal impellers.
  4. Transmission system mounted external to the air stream.

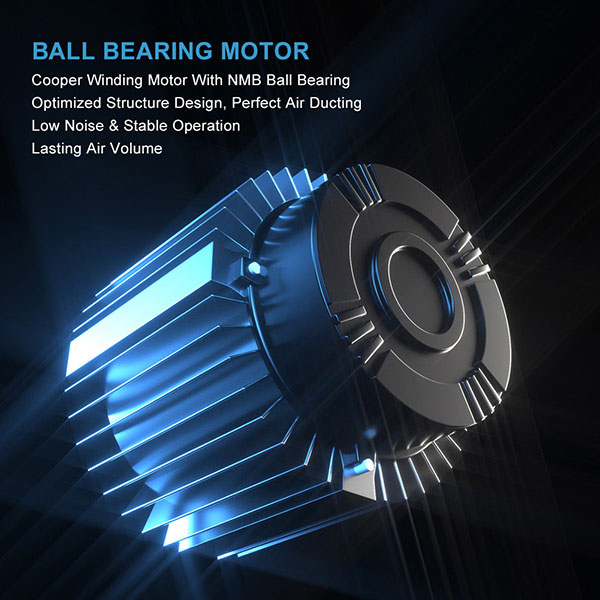

  5. Motor mounted within the fan cabinet.
Enquriy Cabinet Fans PDF



Range of cabinet fans designed for smoke extraction in fire conditions and certified (CE marked). The casings are manufactured from heavy gauge galvanised sheet steel. All models incorporate double inlet forward curved centrifugal impellers. Transmission system mounted external to the air stream. Motor mounted within the fan cabinet.

(Mobile terminal:Slide the sheet to the right to see more)

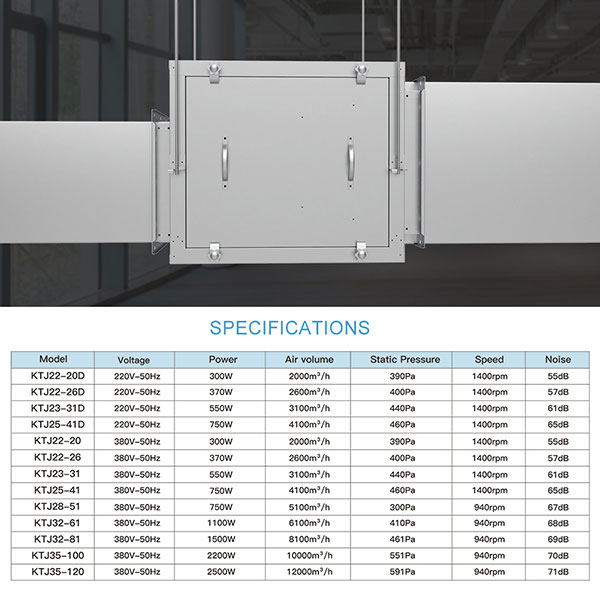

 Model
Voltage
Power
Airflow
Static Pressure
Speed
KTJ22-20D
220V – 50Hz
300W
2000m3/h
390Pa
1400rpm
KTJ23-31D
220V – 50Hz
550W
3100m3/h
440Pa
1400rpm
KTJ23-41D
220V – 50Hz
750W
4100m3/h
460Pa
1400rpm
KTJ22-20
380V – 50Hz
300W
2000m3/h
390Pa
1400rpm
KTJ23-31
380V – 50Hz
550W
3100m3/h
440Pa
1400rpm
KTJ25-41
380V – 50Hz
750W
4100m3/h
460Pa
1400rpm
KTJ28-51
380V – 50Hz
750W
5100m3/h
300Pa
940rpm
KTJ32-61
380V – 50Hz
1100W
6100m3/h
410Pa
940rpm
KTJ32-81
380V – 50Hz
1500W
8100m3/h
461Pa
940rpm
KTJ35-100
380V – 50Hz
2200W
10000m3/h
551Pa
940rpm
KTJ35-120
380V – 50Hz
2500W
12000m3/h
591Pa
940rpm

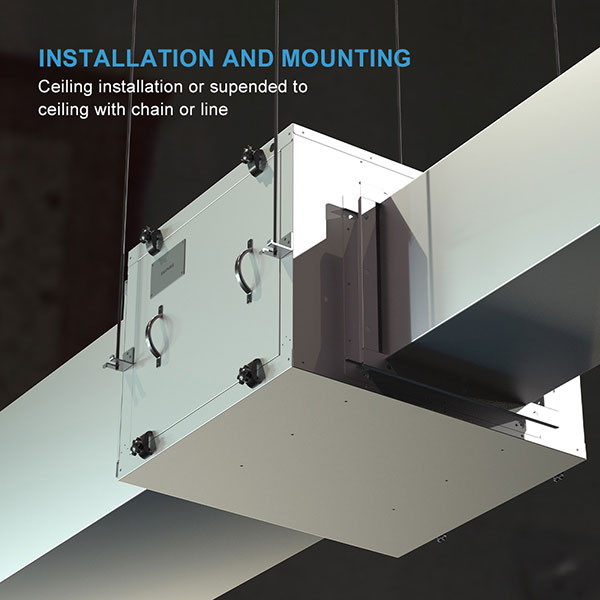

Easy to install
The cabinets have fixing points on the corners easing the installation either on the floor or ceiling.

Compact design
Motor inside the fan casing, providing a smaller size and a higher compacity.

Robustness
Quality finishing, with aluminium corners providing a high robustness.
