KCQR Whole home Heat Recovery Ventilator

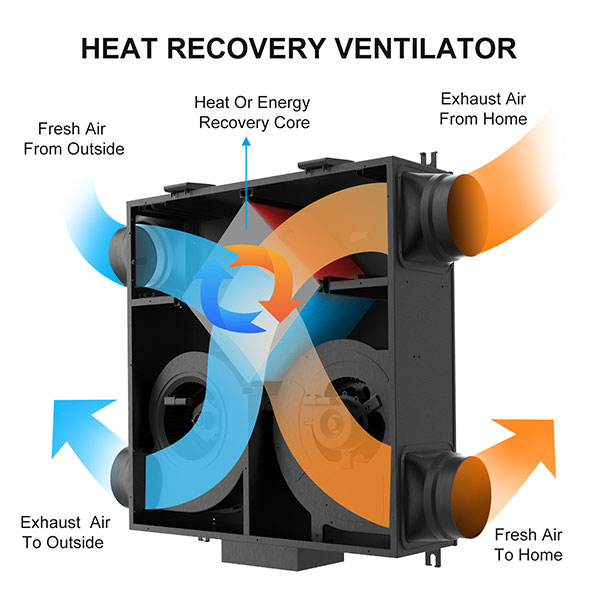

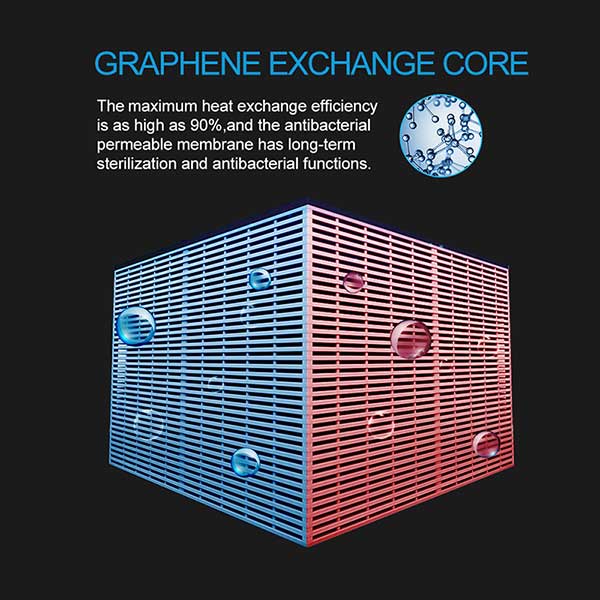

  1. Counter-flow heat exchanger with up to 88% thermal efficiency.
  2. Internal acoustic cotton to reduce noise level.
  3. Low-consumption motor.
  4. Centrifugal forward curved impeller
  5. Galvanised sheet steel body
  6. 4 nozzles Ø100 mm. / Ø150 mm. / Ø200 mm.
Enquriy KCQR PDF

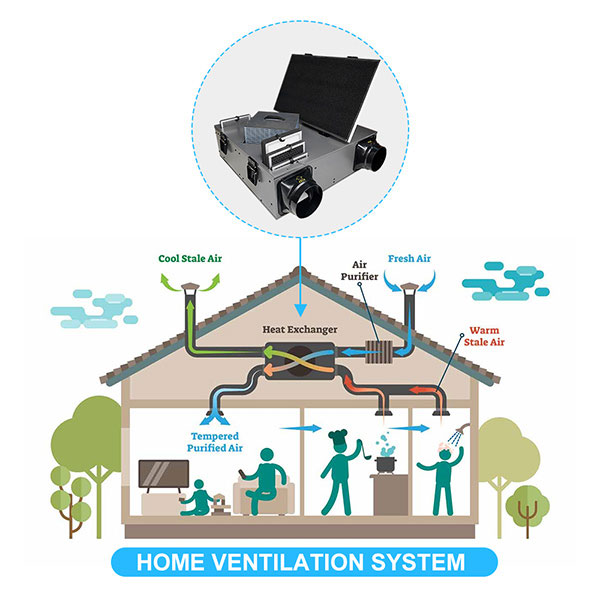

Low energy whole house heat recovery unit with a high-efficiency heat exchanger (up to 88%) to provide a constant supply of fresh tempered air into the living spaces.

Features

  • Counter-flow heat exchanger with up to 88% thermal efficiency.
  • Internal acoustic cotton to reduce noise level.
  • Centrifugal forward curved impeller
  • Galvanised sheet steel body
  • 4 nozzles Ø100 mm. / Ø150 mm. / Ø200 mm.

unit：mm
（Mobile terminal：Slide the sheet to the right to see more）

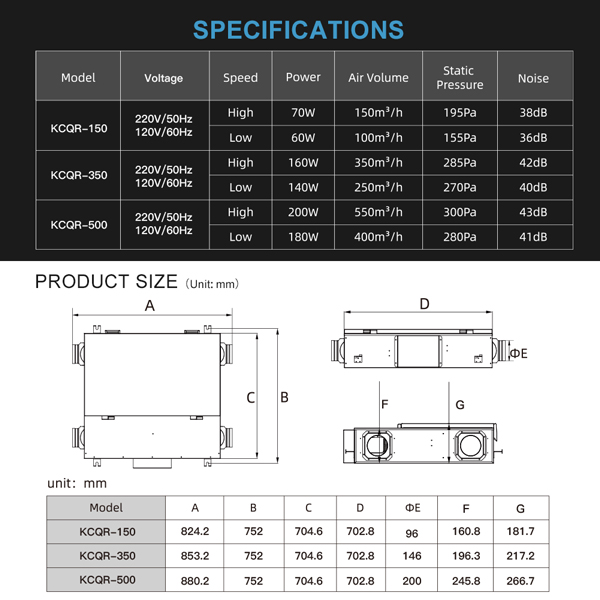

ModelABCDΦEFG
KCQR-150824.2752704.6702.896160.8181.7
KCQR-350853.2752704.6702.8146196.3217.2
KCQR-500880.2752704.6702.8200245.8266.7
ModelVoilageSpeedPowerAir VolumeStatic PressureNoise
KCQR-150220V/50HZ
120V/60Hz		High70W150m³/h195Pa38dB
Low60W100m³/h155Pa36dB
KCQR-350220V/50HZ
120V/60Hz		High160W350m³/h285Pa42dB
Low140W250m³/h270Pa40dB
KCQR-500220V/50HZ
120V/60Hz		High200W550m³/h300Pa43dB
Low180W400m³/h280Pa41dB
