DPT-J Series Slim Box Ventilation Fan with HEPA / Carbon Filter

  1. Metal Filter remove large particles, small insects & pollens.Pre-Filter efficiency up to 90%, filters particles such as mold & spores.

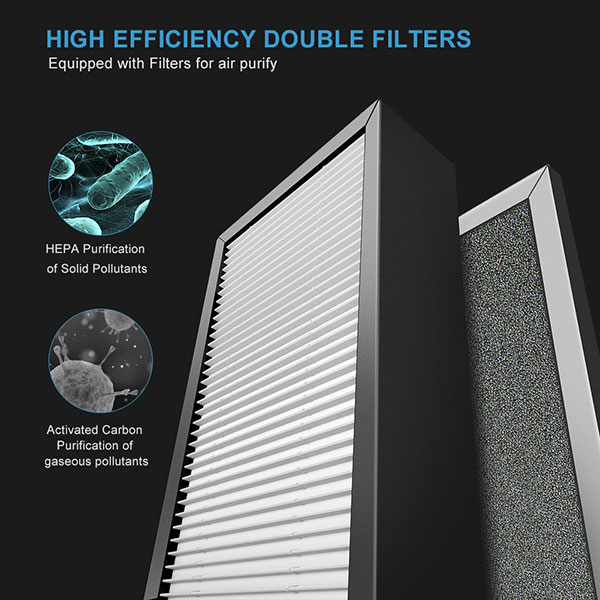

  2. HEPA Filter H11 grade efficiency up to 95%, filters such as virus.
  3. Carbon Activated Filter to absorb formaldehyde, benzene, randon & harmful chemical.
  4. Negative Ion Filter attach to positively charged particles in the room, such as dust, bacteria, pollen, smoke, and other allergens.
Enquriy DPT-J PDF


Available, depending upon the model, with single phase motors in 2 or 4 poles.

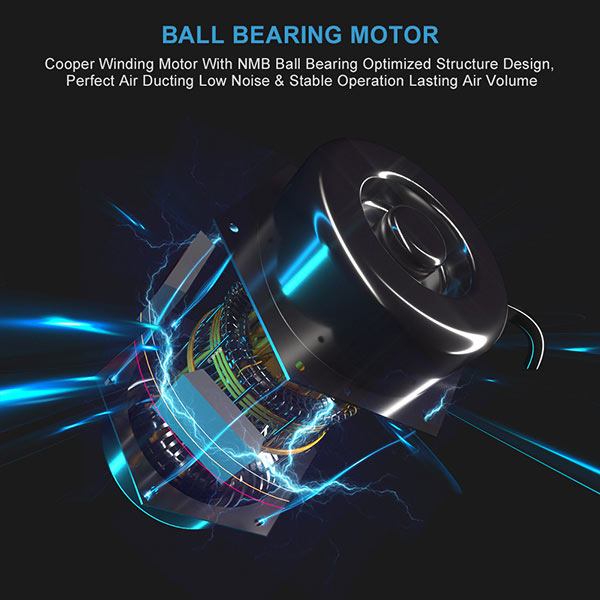

Motors
  • External rotor motors, IP44, class B, with ball bearings and thermal protection.
  • Electrical supply: Single phase 230V-50Hz.
  • Working temperature from -20ºC to +40ºC.
On request:

Versions protected against corrosion by epoxy paint coating.

Low noise level:

Acoustic insulation of 7 mm thickness flame retardant (M1) melamine foam reducing the noise level significantly.

Easy to mount:

All models are supplied with four mounting feet to facilitate any ceiling, wall or floor mounting installation.

Installation at any position:

Can be mounted in vertical, horizontal or inverted position.

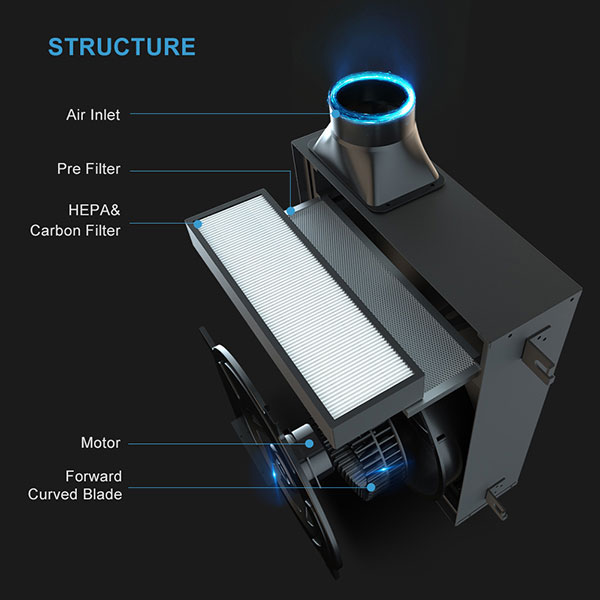

2 Filters 4 Purification :
  • Primary Effect Filtering Net: Filtering particulate matter, can be washed
  • Activated Carbon Fitler: Decomposes Formaldehyde TVOCs & other Harmful Gas
  • Negative Silver ion Effect Filter: Sterilization and Disinfection
  •  H11 Grade HEPA Filter Net: Filter PM2.5, Viruses, Allergens & others.
