DPT-M Series Slim Box Centrifugal Fan

  1. Extremely silent & Stable operation
  2. High air pressure, long distance air supply
  3. Slim fan body, easy installations

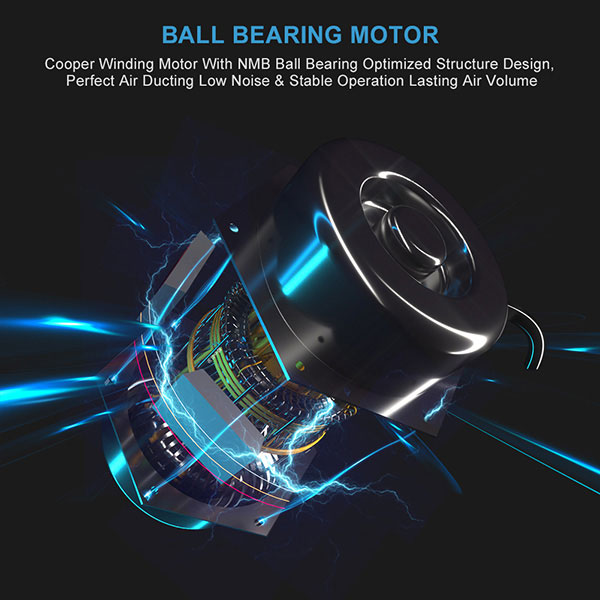

  4. Pure copper motor, ball bearing
  5. Low power consumption
Enquriy DPT-M PDF


Acoustic cabinet fan manufactured from thick specification galvanized steel sheet and lined with 25mm thick fire proof sound insulation (M0).

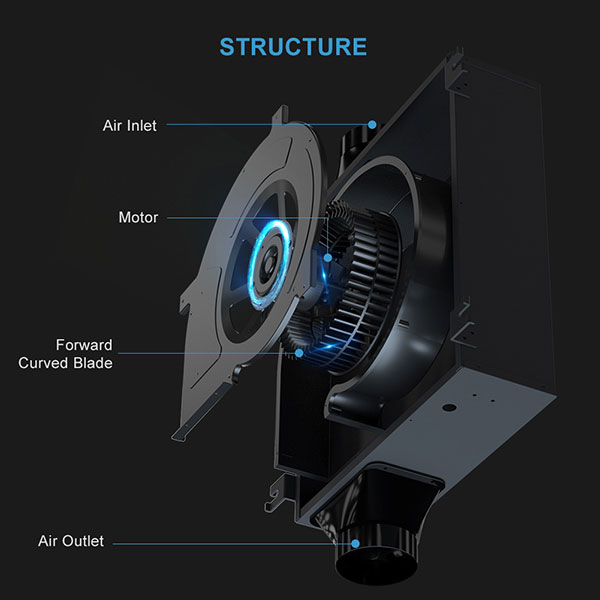

All models incorporate single phase direct-drive forward curved centrifugal fan. All cabinets are supplied with a removable cover closing hermetically and can be installed outdoors as standard. Fitted with single phase 2-speed motors.

All the motors are IP44, Class B, with ball bearings and thermal protection. Electrical supply: Single phase 230V-50/60Hz. Working temperature from -20ºC to +40ºC.

On request
Models manufactured with 50mm thickness of fireproof acoustic fiberglass insulation (M0).

Low noise level
Acoustic insulation of 25mm thickness fireproof fibreglass (M0) (on request, of 50mm) with a high resistance coating reducing the noise level significantly.

Easy to install
Mounting feet to ease installation in any position.

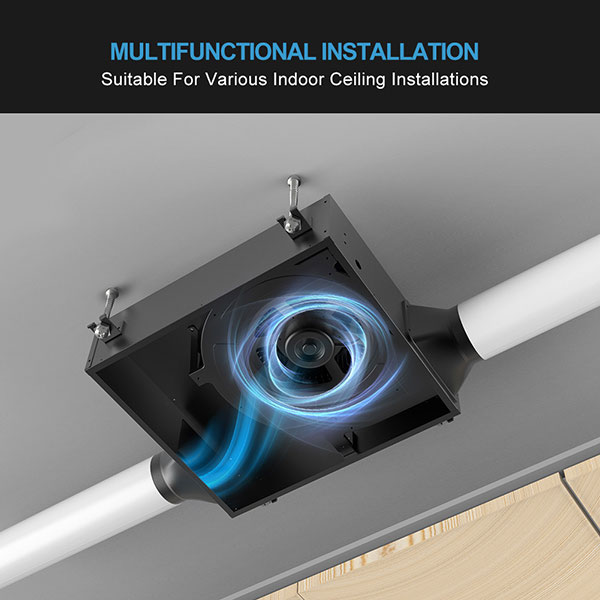

Installation at any position
To be mounted in vertical, horizontal or inverted position.
