Cross-Flow Air Curtain Q series
- Cooling Retention Effects: Air Curtains Prevents cold air to go outside & hot air to come inside.
- Super Sleek Design: Aesthetics that speaks of Slim design & looks apt for any modern environment.
- Resists Ingress of Dirt & Insects: The even air flow pressure helps in keeping away insects.
- Velocity Control Feature: Gives full access to control the mode of air curtain depending on door height.
DESCRIPTION & FEATURES

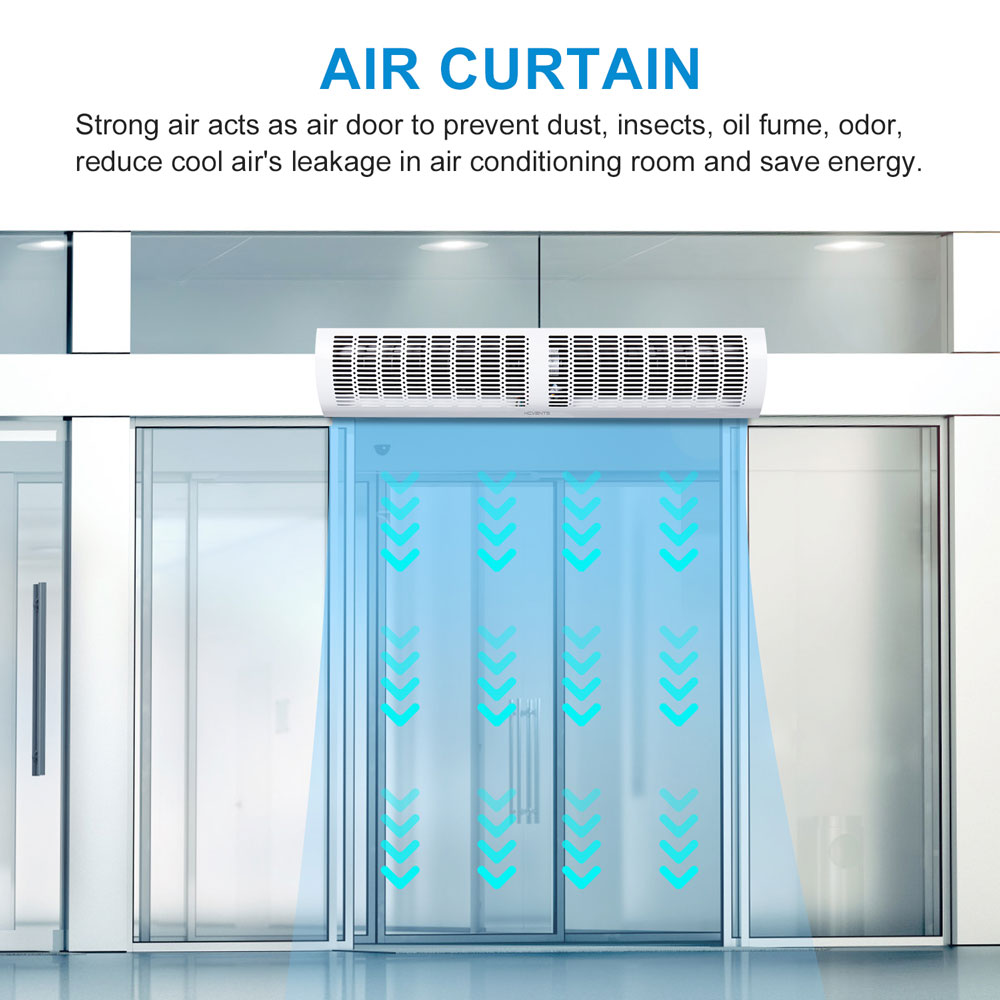

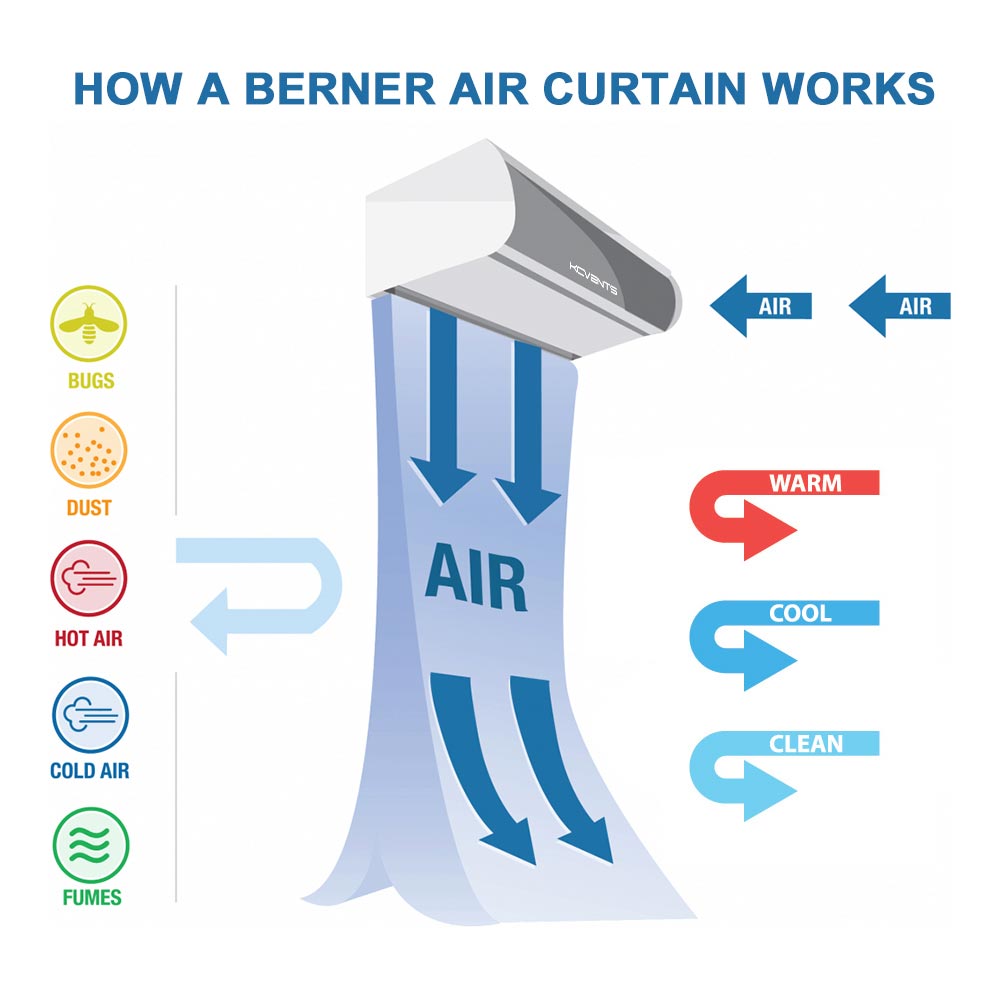

The KC air curtain maintains environmental separation with a light flow of air, that not only results in lowered energy costs but also helps in preventing air borne contaminants & deterring flying insects from moving from one open space to another-enhancing sanitation & hygiene. Applications Entrance of Industries, Restaurants, Offices, Malls & other commercial places.
(Mobile terminal:Slide the picture to the right to see more)
Model | Length | Power | Air Volume | Speed | Noise | N.W |
---|---|---|---|---|---|---|
FM-1209Z | 0.9m | 120W | 1400m3/h | 11m/s | 50dB | 7.0Kgs |
FM-1210Z | 1.0m | 130W | 1700m3/h | 11m/s | 51dB | 7.2Kgs |
FM-1212Z | 1.2m | 155W | 2000m3/h | 11m/s | 51dB | 8.3Kgs |
FM-1215Z | 1.5m | 180W | 2800m3/h | 11m/s | 52dB | 10Kgs |
FM-1218Z | 1.8m | 200W | 3600m3/h | 11m/s | 53dB | 12Kgs |
FM-1220Z | 2.0m | 220W | 4000m3/h | 11m/s | 54dB | 13Kgs |
FM-1220ZS | 2.0m | 300W | 4200m3/h | 11m/s | 56dB | 14Kgs |
- Cooling Retention Effects: Air Curtains Prevents cold air to go outside & hot air to come inside.
- Super Sleek Design: Aesthetics that speaks of Slim design & looks apt for any modern environment.
- Resists Ingress of Dirt & Insects: The even air flow pressure helps in keeping away insects.
- Velocity Control Feature: Gives full access to control the mode of air curtain depending on door height.
